ROCKMORE DTH (Down-the-Hole) Drilling Tools

Rockmore International manufactures the finest and most efficient Down-the-Hole (DTH) hammers and bits for the mining, construction and water well industries. Drill and blast engineers and water well contractors trust Rockmore’s DTH equipment because of the precision engineering and high standards of drilling efficiency built into each of our hammers and bits.

About Rockmore 5C

Rockmore DTH Hammer

Down=the=hole Hammers

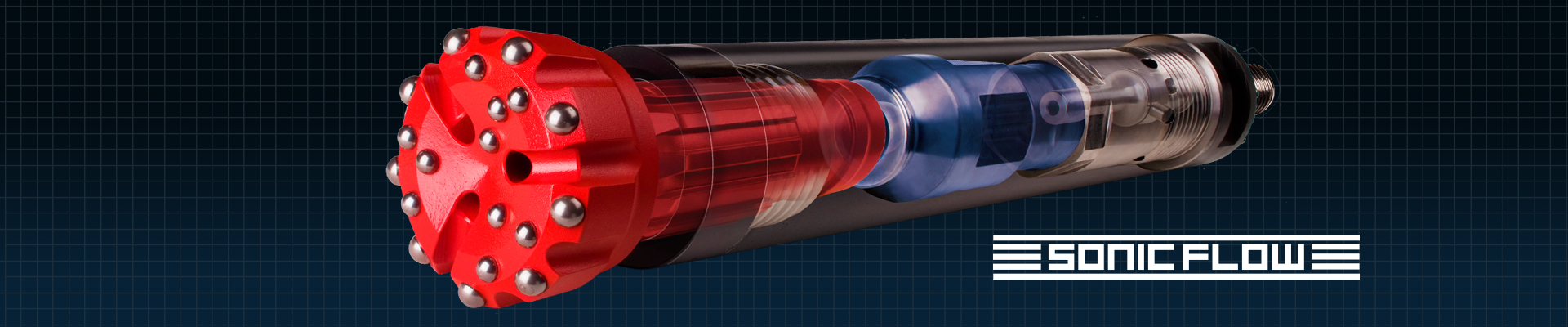

ROCKMORE ROK series DTH hammers

Optimal energy transfer is essential to DTH drilling efficiency – how much compressed air power is transferred from the piston to the bit. That is why we have revolutionized air flow management in the new ROK series high-performance DTH hammers. Our patented SonicFlow technology minimizes backflow and turbulence, enabling the piston to hit the bit harder and with greater frequency. This means increased efficiency, more power, and faster penetration. The streamlined design means fewer parts and easier maintenance. So for greater productivity, get ready to ROK.

Rockmore DTH Hammer

Rockmore DTH Hammer

Rockmore DTH Hammer

Rockmore A Series

Rockmore A Series Drilling

ROCKMORE A Series Hammers

Rockmore’s A Series hammers feature component designs that demonstrate better performance and penetration rates suited to smaller compressors. The more efficient use of compressed air translates to lower air consumption, which leads to lower costs.

The piston and wear sleeve components have been re-designed to increase airflow efficiency at lower air volumes for the hammer cycle. This modification has resulted in air consumption dropping to 962 SCFM (26.5 m3/min) at 350 PSI (24.1 Bar) while increasing penetration rates and further improving productivity and performance. Thus, smaller compressors rated less than 1,000 SCFM that are common on many drill rigs, may now be utilized with the A Series DTH hammers to reach the hammers’ peak performance.

Rockmore T-Series Drilling

Rockmore T-Series Hammers

ROCKMORE T Series Hammers

Rockmore’s T Series hammer class is a breakthrough in DTH drilling technology for mining, construction, and water-well applications. In addition to its ultra high performance features, the new T series design hammers are “tubeless” as they feature standard shank connections that no longer require plastic parts commonly known as Blow Tubes or Foot Valves. The elimination of this plastic part increases reliability while not compromising drilling efficiency.

Tubeless logo

DTH Product Information Downloads

Download the information you need about our Down-the-Hole drilling equipment.

Title Language Size Download
DTH Drilling Tools Product Catalog Multi-Language 5.75 mb Download Preview
DTH Hammers Catalog Section Multi-Language 6.70 mb Download Preview
DTH Bits Catalog Section Multi-Language 1.56 mb Download Preview
DTH Product Handbook English 3.84 mb Download Preview
DTH Marketing Brochure-EN English 14.96 mb Download Preview
DTH Marketing Brochure-SP Spanish 2.13 mb Download Preview
DTH Bit Selection Guide Flyer-EN English 407.56 kb Download Preview
DTH Bit Selection Guide Flyer-SP Spanish 394.92 kb Download Preview
CrossFlow Drill Bit Flyer-EN English 1.07 mb Download Preview
CrossFlow Drill Bit Flyer-SP Spanish 1.07 mb Download Preview
MultiPoint Carbide Flyer-EN English 3.97 mb Download Preview
MultiPoint Carbide Flyer-SP Spanish 4.33 mb Download Preview
Multi-Dome Carbide Flyer-EN English 118.62 kb Download Preview
DTH Hammer Class List Flyer-EN English 58.13 kb Download Preview
DTH Hammer List-EN English 125.75 kb Download Preview
ROK DTH Hammers Press Release-EN English 236.25 kb Download Preview
ROK DTH Hammers Press Release-SP Spanish 240.59 kb Download Preview
ROK A Series DTH Hammer Flyer-EN English 4.32 mb Download Preview
ROK A Series DTH Hammer Flyer-SP Spanish 4.32 mb Download Preview
ROK T Series DTH Hammer Flyer-EN English 1.80 mb Download Preview
ROK T Series DTH Hammer Flyer-SP Spanish 1.38 mb Download Preview
Conversion Kit Flyer-EN English 3.76 mb Download Preview
Tubeless Hammer Notice Flyer English 372.23 kb Download Preview
ROK 250 DTH Hammer Flyer-EN English 4.02 mb Download Preview
ROK 250 DTH Hammer Flyer-SP Spanish 4.02 mb Download Preview
ROK 500DH DTH Hammer Flyer-EN English 3.93 mb Download Preview
Bit Grinding System Flyer-EN English 2.02 mb Download Preview
Hammer Guard Oil Flyer-EN English 342.20 kb Download Preview
Accessories Catalog Section Multi-Language 381.19 kb Download Preview
ROK DTH Hammer Assembly-Disassembly Guide-EN English 2.00 mb Download Preview
ROK DTH Hammer Operation and Service Guide-EN English 5.10 mb Download Preview
ROK DTH Hammer Operation and Service Guide-SP Spanish 5.63 mb Download Preview
ROK DTH Hammer Operation and Service Guide-DE German 5.59 mb Download Preview
ROK LT Hammer Operation and Service Guide-EN English 1.96 mb Download Preview
ROK LT Hammer Operation and Service Guide-SP Spanish 2.28 mb Download Preview
ROK LT Hammer Operation and Service Guide-DE German 2.25 mb Download Preview
ROK 500DH Hammer Operation and Service Guide-EN English 3.71 mb Download Preview
